Struct and Union Data Types

🎯 In embedded C programming, struct and union are essential user-defined data types that enable efficient management of related data. A struct (structure) allows grouping variables of different types under a single name, making it easier to organize and access complex data, such as sensor readings or device configurations. Each member of a struct occupies its own memory space, enabling simultaneous storage of multiple values.

💡 A union, on the other hand, provides a way to store different data types in the same memory location. All members of a union share the same memory, so only one value can be stored at a time. This is particularly useful in memory-constrained embedded systems where optimizing resource usage is critical.

💡 Both struct and union play a vital role in embedded applications, offering flexibility, improved code readability, and efficient memory management for handling diverse data requirements.

Table of Contents

• Struct Data Type
  • Key Points
  • Use Cases
  • Declaration
  • Initialization
  • Modification
• Union Data Type
  • Key Points
  • Use Cases
  • Declaration
  • Initialization
  • Modification
• Demo Project
  • How to calculate the size of struct and union data types?
  • Initialize the struct variable
  • Modify struct members
  • Modify union members
  • Padding bytes for aligment
    • Padding bytes in microcontroller memory layout
    • How to remove padding bytes to save memory?

Struct Data Type

Key Points

🔑 Here are the key points of the struct data type in C:

• A struct groups variables of different types under a single name.
• Each member of a struct has its own memory location.
• Structs help organize related data, improving code readability and maintainability.
• Members are accessed using the dot (.) operator.
• Structs can be nested and used in arrays or pointers.
• Widely used for representing complex data structures in embedded systems.

Use Cases

Here’s a typical use case for using the struct data type in embedded systems:

📌 Structs are commonly used to group related data for hardware peripherals, such as sensors or communication modules. For example, you can define a struct to store all relevant information about a sensor, including its ID, measurement value, status, and configuration settings. This approach simplifies data management, improves code readability, and makes it easier to pass complex data between functions or modules in embedded applications.

Declaration

• In C, a struct data type is declared using the struct keyword followed by the structure name and its member definitions. For example:

  struct Sensor {
    int id;
    float value;
    char status;
  };


• This declares a struct named Sensor with three members: id, value, and status.

Initialization

• You can initialize a struct data type in C at the time of declaration or later in your code. Here’s an example:

  struct Sensor sensor1 = {1, 23.5, 'A'};


• This creates a Sensor struct variable named sensor1 and initializes its members with values.

• Modification

• You can modify the members of a struct in C using the dot (.) operator. For example:

  sensor1.value = 25.0;
  sensor1.status = 'B';


• This updates the value and status members of the sensor1 struct variable.

Union Data Type

Key Points

🔑 Here are the key points of the union data type in C:

• A union allows storing different data types in the same memory location.
• All members of a union share the same memory space; only one member can hold a value at a time.
• The size of a union is determined by its largest member.
• Useful for memory optimization in embedded systems.
• Members are accessed using the dot (.) operator.
• Widely used for handling data that may take different forms.

  Use Cases

  Here’s a typical use case for using the union data type in embedded systems:

📌 Unions are commonly used when a variable may need to store different types of data at different times, such as protocol packets, hardware registers, or interpreting raw data from peripherals. For example, a union can be used to access the same memory as an integer or a byte array, depending on the application’s requirements. This approach helps save memory and simplifies data handling in embedded applications.

Declaration

• In C language, a union data type is declared using the union keyword followed by the union name and its member definitions. For example:

  union Data {
    int intValue;
    char byteArray[4];
  };


• This declares a union named Data with three members: intValue, and byteArray.

Initialization

• You can initialize a union data type in C at the time of declaration or later in your code. Here’s an example:

  union Data data1;
  data1.intValue = 100;


• This creates a Data union variable named data1 and initializes its intValue member.

Modification

• You can modify the members of a union in C using the dot (.) operator. For example:

  data1.byteArray[0] = 10;


  [!CAUTION] This updates the byteArray[0] member of the data1 union variable. Note that modifying one member will overwrite the value of other members, since all share the same memory.

Demo Project

🚀 Source code: demo project

• You can use this demo project to gain hands-on experience with struct and union data types in embedded software. In this project, I demonstrate:

How to calculate the size of struct and union data types?

👉 The size of a struct is typically the sum of the sizes of all its members, plus any padding added for alignment. For a union, its size is determined by its largest member, since all members share the same memory space.

// Example: struct data type for a rectangle shape
typedef struct {
	uint16_t width_u16;
	uint16_t height_u16;
	uint32_t area_u32;
} Rectangle_st;

// Example: union data type for register access
typedef struct {
	uint32_t bit0 : 1;
	uint32_t bit1 : 1;
	uint32_t bit2 : 1;
	uint32_t bit3 : 1;
	uint32_t reserved : 28;
} RegisterBits_st; // Access individual bits

typedef union {
	uint32_t register_u32;        // Access the entire register
	RegisterBits_st bits_st;      // Access individual bits
	uint8_t registerBytes_u8[4];  // Access as bytes
	uint16_t registerHalfWords_u16[2]; // Access as half-words
} RegisterType_un;

[!TIP] Using typedef before struct and union lets you create a type alias for the structure or union. This makes your code cleaner and easier to read, as you can use the alias directly without repeatedly writing struct or union before variable declarations. For example, with typedef struct { ... } RegisterBits_st;, you can declare variables as RegisterBits_st reg; instead of struct RegisterBits_st reg;. This is especially useful in embedded systems where code clarity and brevity are important.

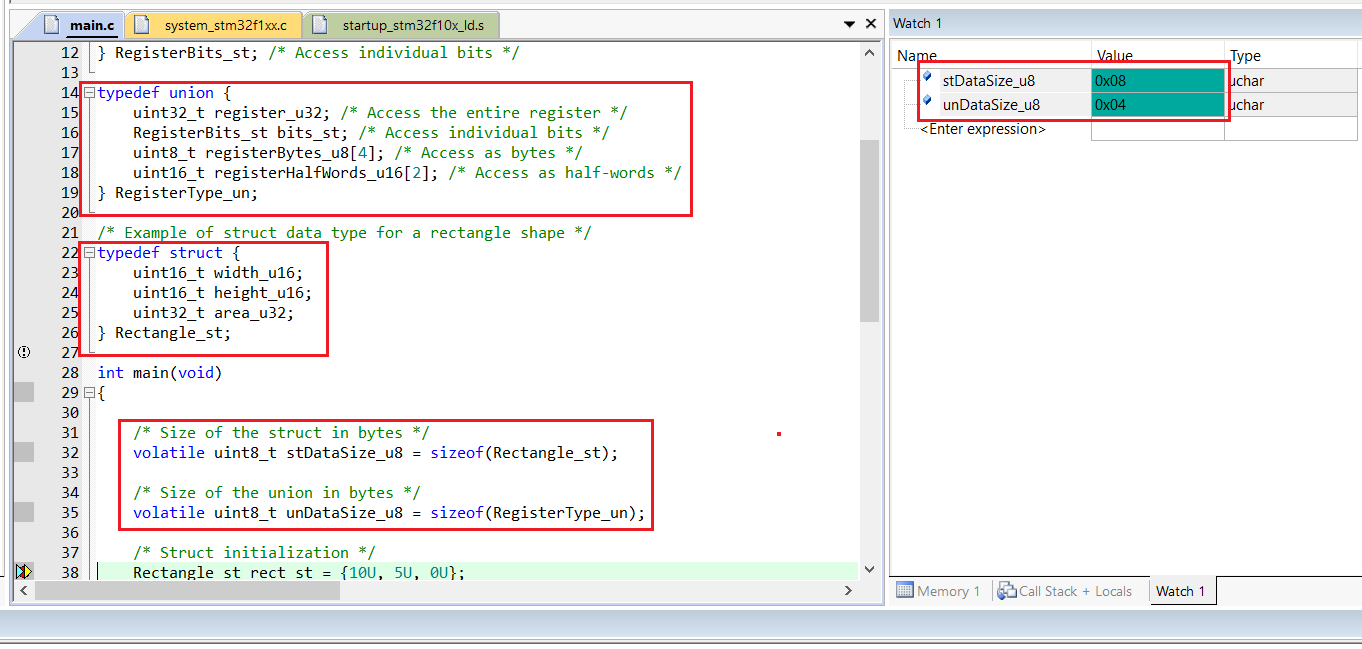

👉 Actual size of struct and union data types in embedded system memory:

• Size of Rectangle_st = 2 (width_u16) + 2 (height_u16) + 4 (area_u32) = 8 bytes
• Size of RegisterType_un = maximum of (4 (register_u32), 4 (bits_st), 4 (registerBytes_u8[4]), 4 (registerHalfWords_u16[2])) = 4 bytes

Initialize the struct variable

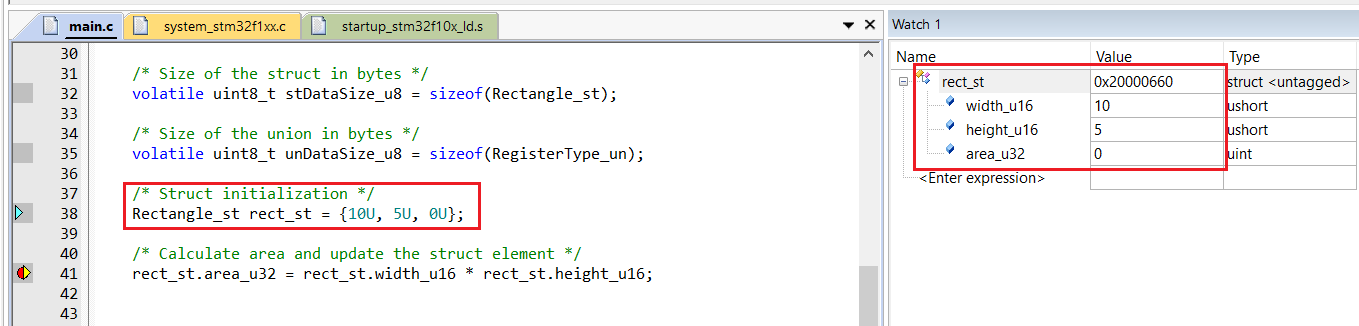

👉 You can initialize a struct variable when you declare it, assigning values to its members immediately.

Modify struct members

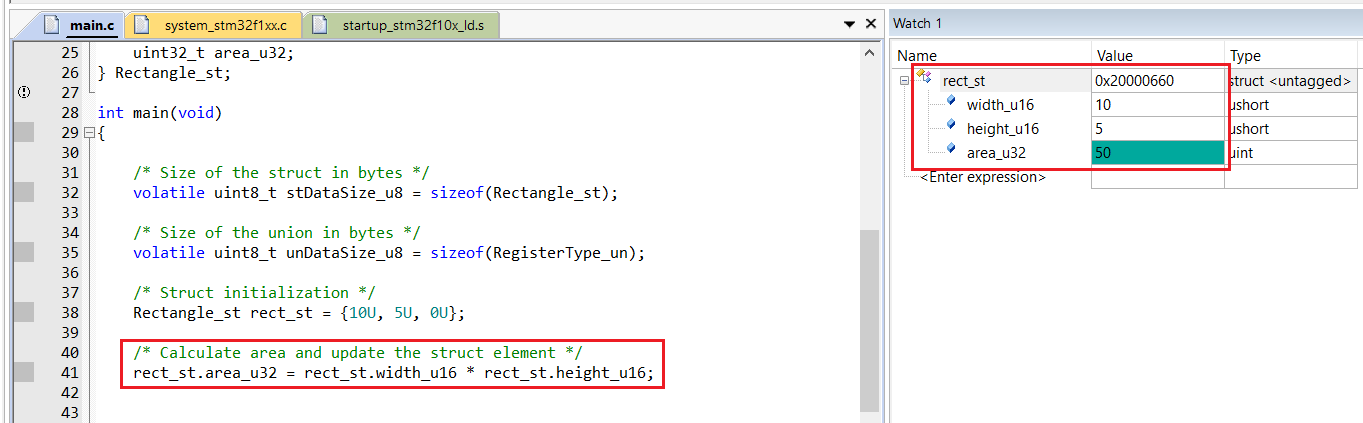

👉 After a struct variable has been declared, you can update its members at any time using the dot operator.

Modify union members

👉 You can modify any member of a union variable after it has been declared. However, updating one member will immediately affect the values of all other members, since they share the same memory space.

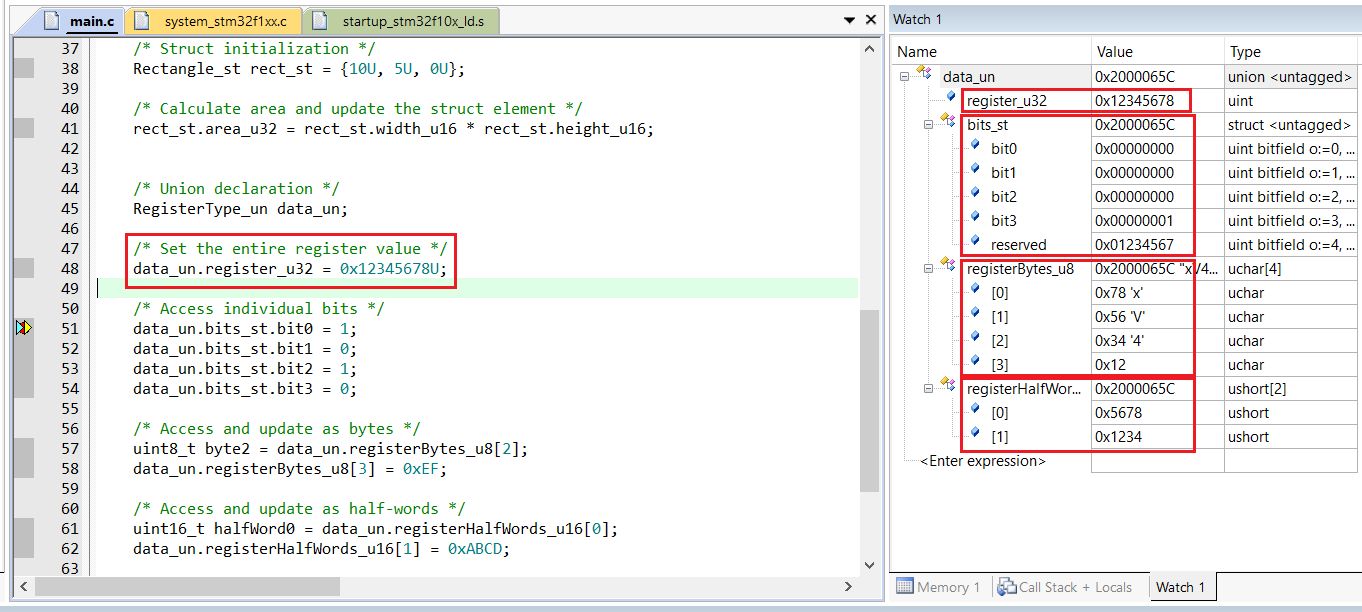

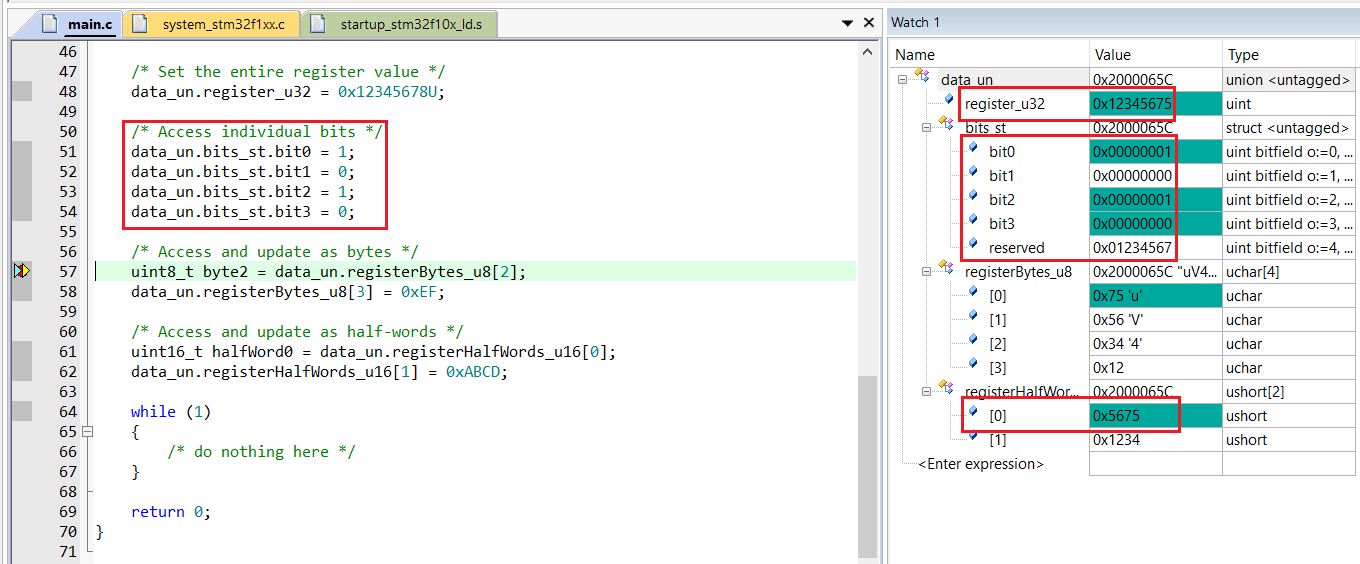

• Set the entire register value:

• Set individual bit values:

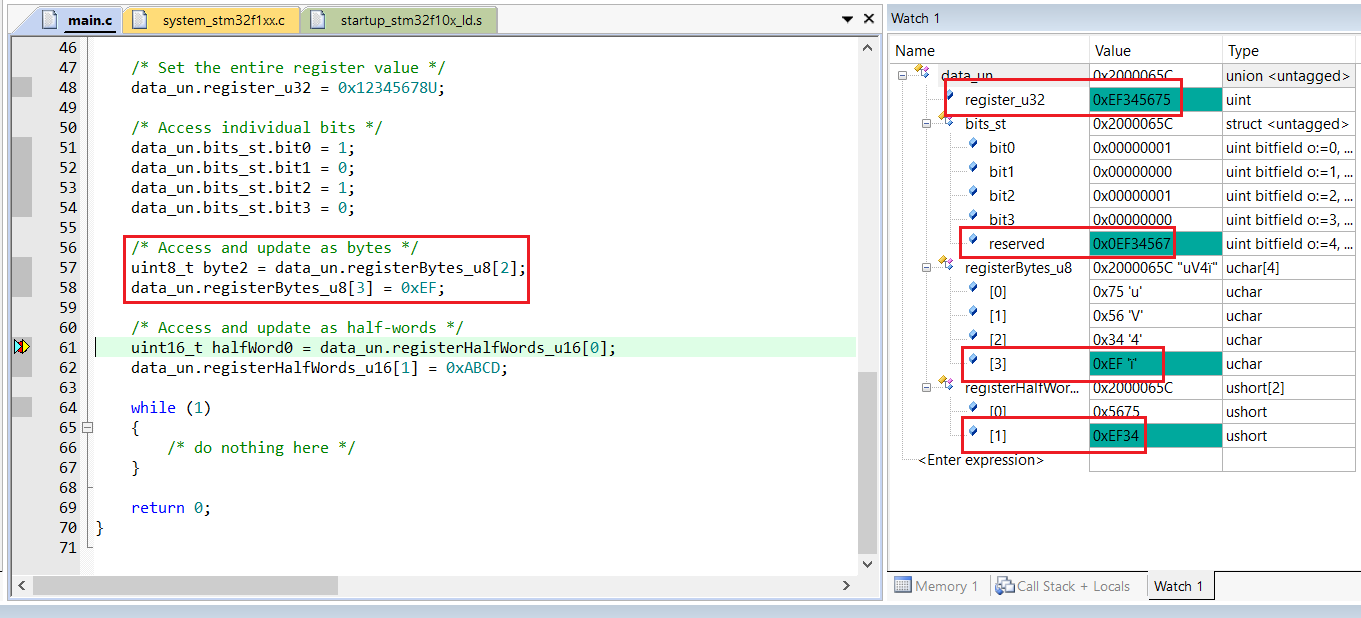

• Update union member value as bytes:

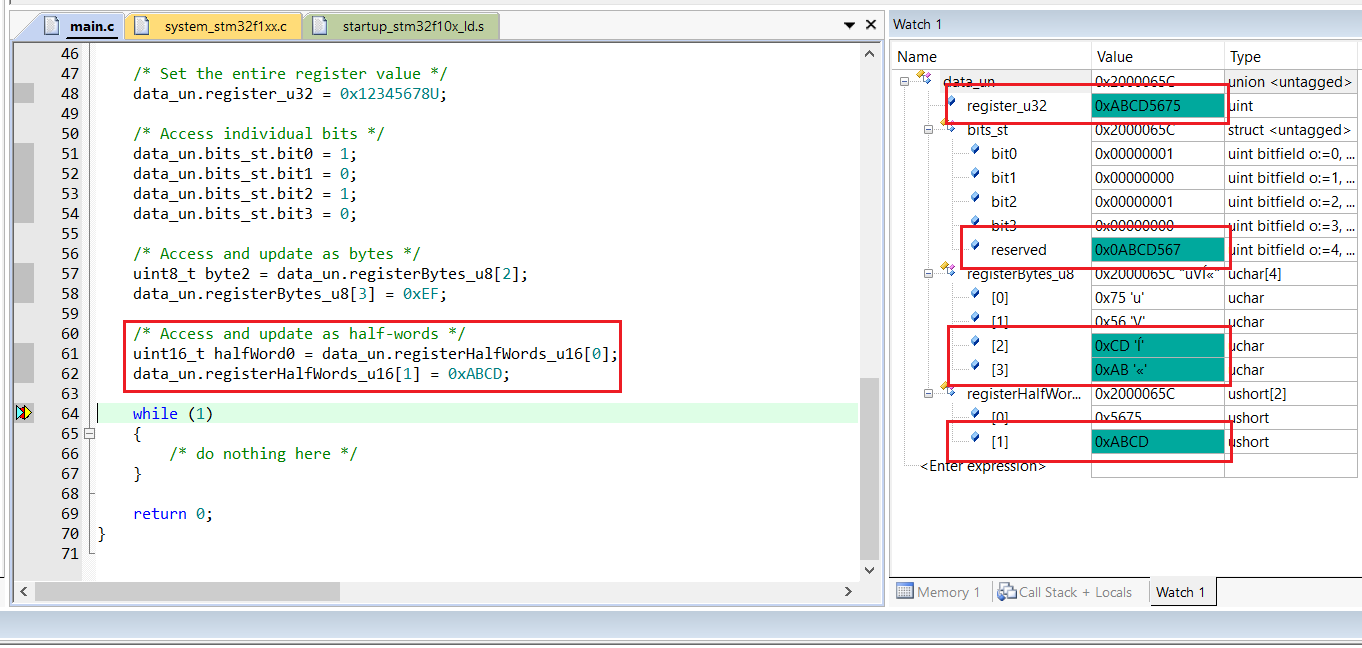

• Update union member value as half-words:

Padding bytes for aligment

[!IMPORTANT] The order of struct members can impact the overall size of a struct because of memory alignment and padding. Grouping members of similar or decreasing size together helps minimize padding and improves memory efficiency.

[!IMPORTANT] The amount of padding bytes inserted depends on the microcontroller’s architecture and its memory alignment requirements.

👇 The following demonstration shows how padding bytes are used for alignment in the 32-bit STM32F103C6 microcontroller and offers tips for optimizing memory usage.

Padding bytes in microcontroller memory layout

👉 Padding bytes may be inserted if struct members are not arranged efficiently. For example, 2 bytes of padding can be added after a uint16_t member to align the next member on a 32-bit boundary. The uint32_t member naturally fits the 32-bit memory layout without requiring extra padding.

typedef struct {
	uint16_t width_u16;
	uint32_t area_u32;
	uint16_t height_u16;
} Rectangle_st;

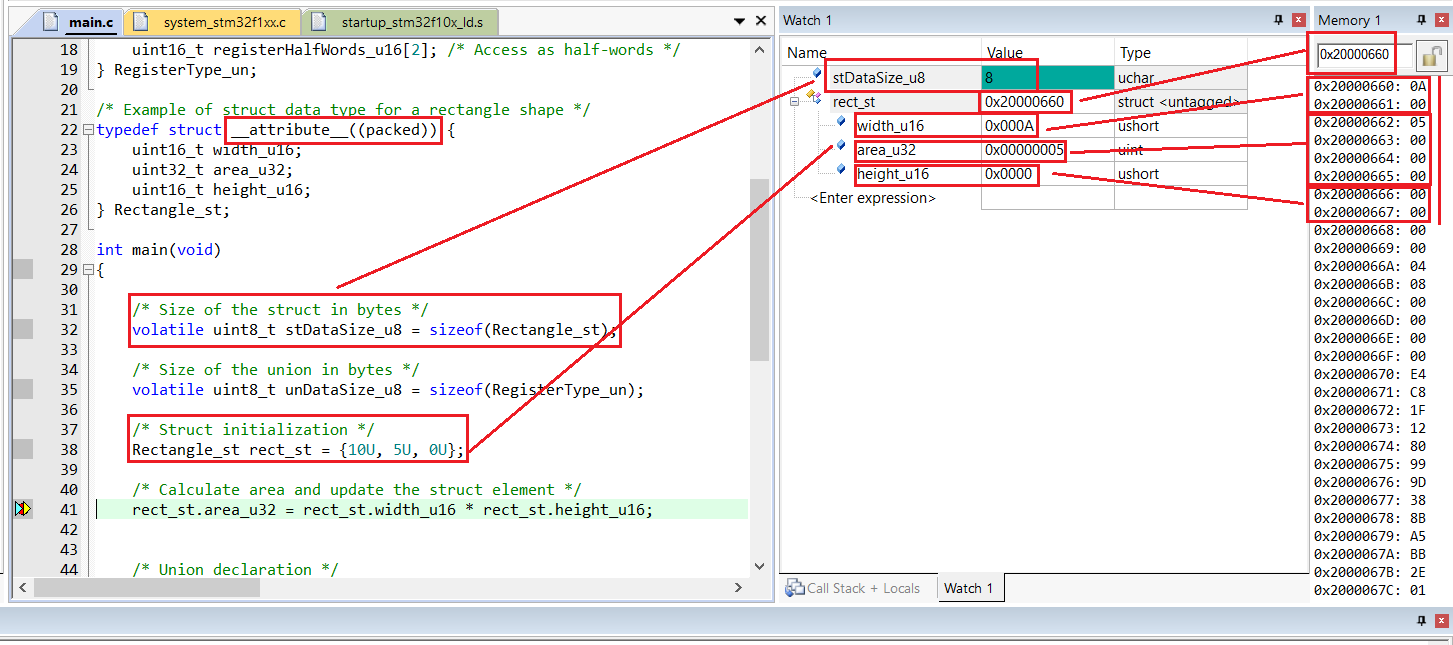

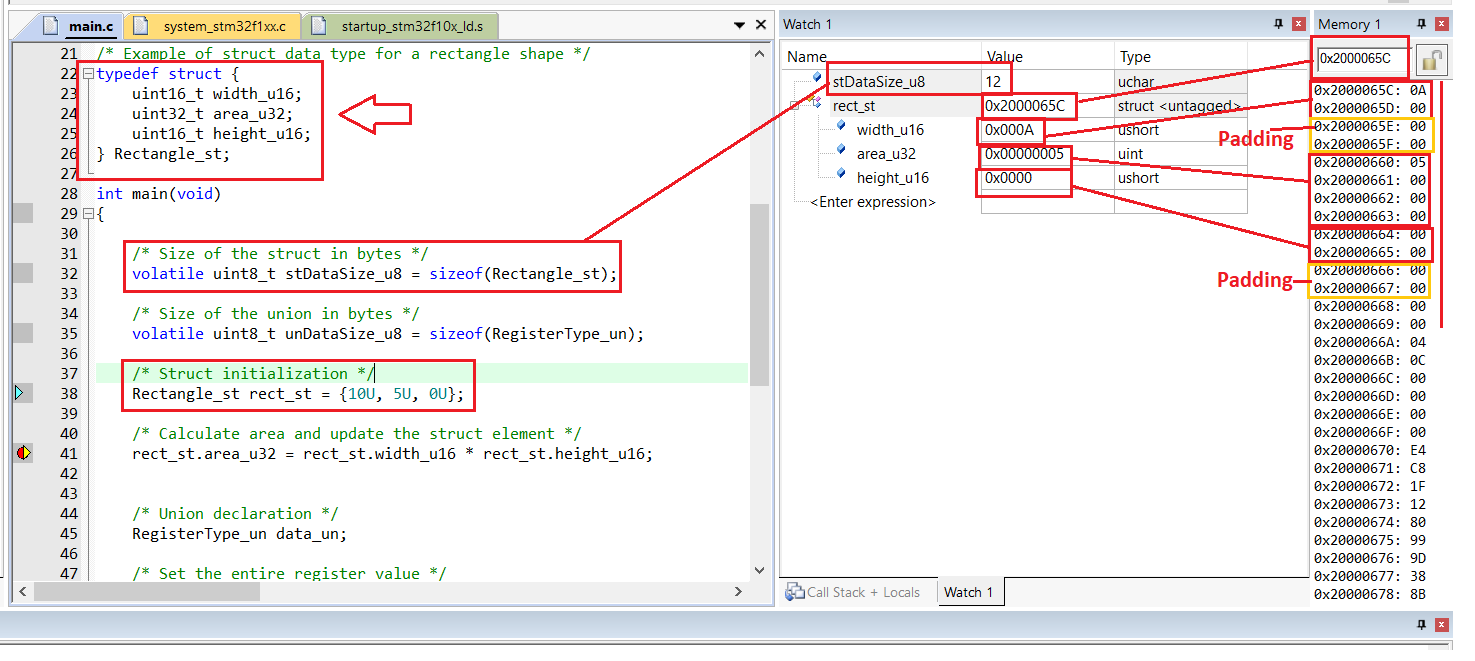

The padding bytes are visible in the microcontroller’s memory layout:

How to remove padding bytes to save memory?

[!TIP] One effective way to reduce padding bytes is to arrange struct members from largest to smallest, or to group them according to the bit-width supported by the microcontroller.

typedef struct {
	uint16_t width_u16;
	uint16_t height_u16;
	uint32_t area_u32;
} Rectangle_st;

[!TIP] Another method is to use compiler-specific features, such as the packed attribute in the ARM compiler, to force members to be allocated consecutively without padding. Similar options are available in other compilers.

typedef struct __attribute__((packed)) {
	uint16_t width_u16;
	uint32_t area_u32;
	uint16_t height_u16;
} Rectangle_st;

• With this approach, struct members are placed directly next to each other, eliminating padding bytes:

🚀 You can use this demo project to experiment further and deepen your understanding of struct and union data types.
