Embedded C Macro Demo Project

🎯 As you may already know, macros in C are commonly used to replace constant numbers during preprocessing. In this article, I will recap the basic usage of macros and dive deeper into their applications in embedded development to answer the questions below:

How do you define a constant using macro?
How do you create a function-like macro?
How do you use macro for conditional compilation?
How do you prevent multiple inclusion with macros?
How do you make your code portable using macros?
What are the best practices for using macros?

Embedded C Macro Demo Project

Basics about Macros

❓ What is a macro in C?

👉 A macro is a preprocessor directive that replaces text before compilation. It’s defined using #define and performs simple text substitution.

❓ Which compilation step are macros used in?

👉 Macros are processed during the preprocessing step, which happens before actual compilation.

Demo Project

Software Design

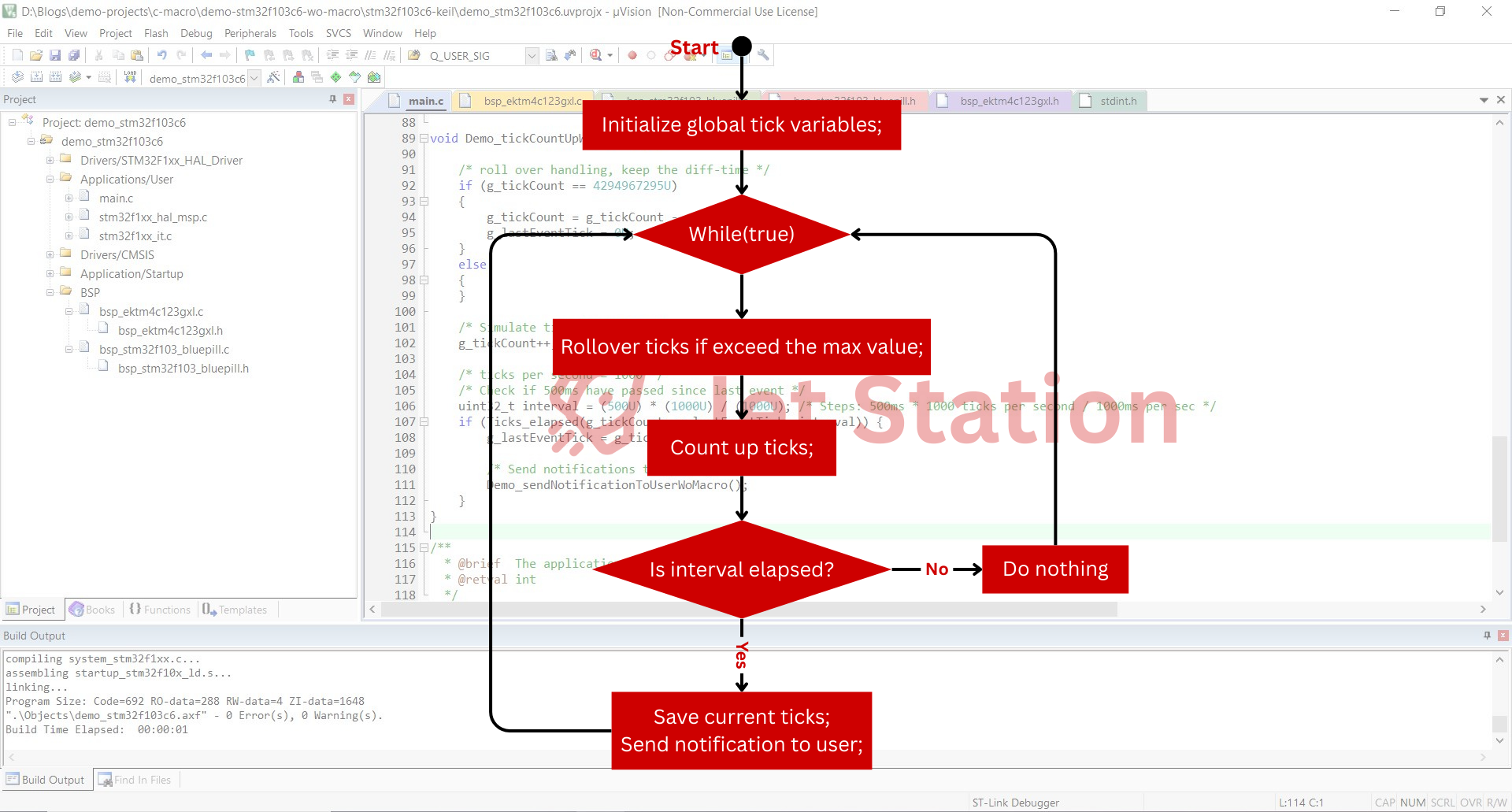

💡 In this demonstration, I simulate a system tick that counts up 1000 times per second. When 500ms have elapsed, the software sends a notification to the user by turning on the on-board LEDs on the development board.

💡 I would like to make the high-level software module compatible with 2 types of boards: the STM32F103 Blue Pill Board and the Tiva C Launchpad EK-TM4C123GXL with the help of Board Support Package (BSP).

Software Design

There are some goals I would like to achieve:

✔️ My software should be readable and easy to understand
✔️ I should be able to select the target development board, enable/disable debug code in the software by changing the configurations
✔️ Resource consumption should be optimized

Implementation Approach Without Macro

🔽 Source: Demonstration Without Macro

In the first implementation approach, I use constants, variables and functions to implement the software without using any macros. I have the software running as I expect but it has failed to achieve the goals.

Problems

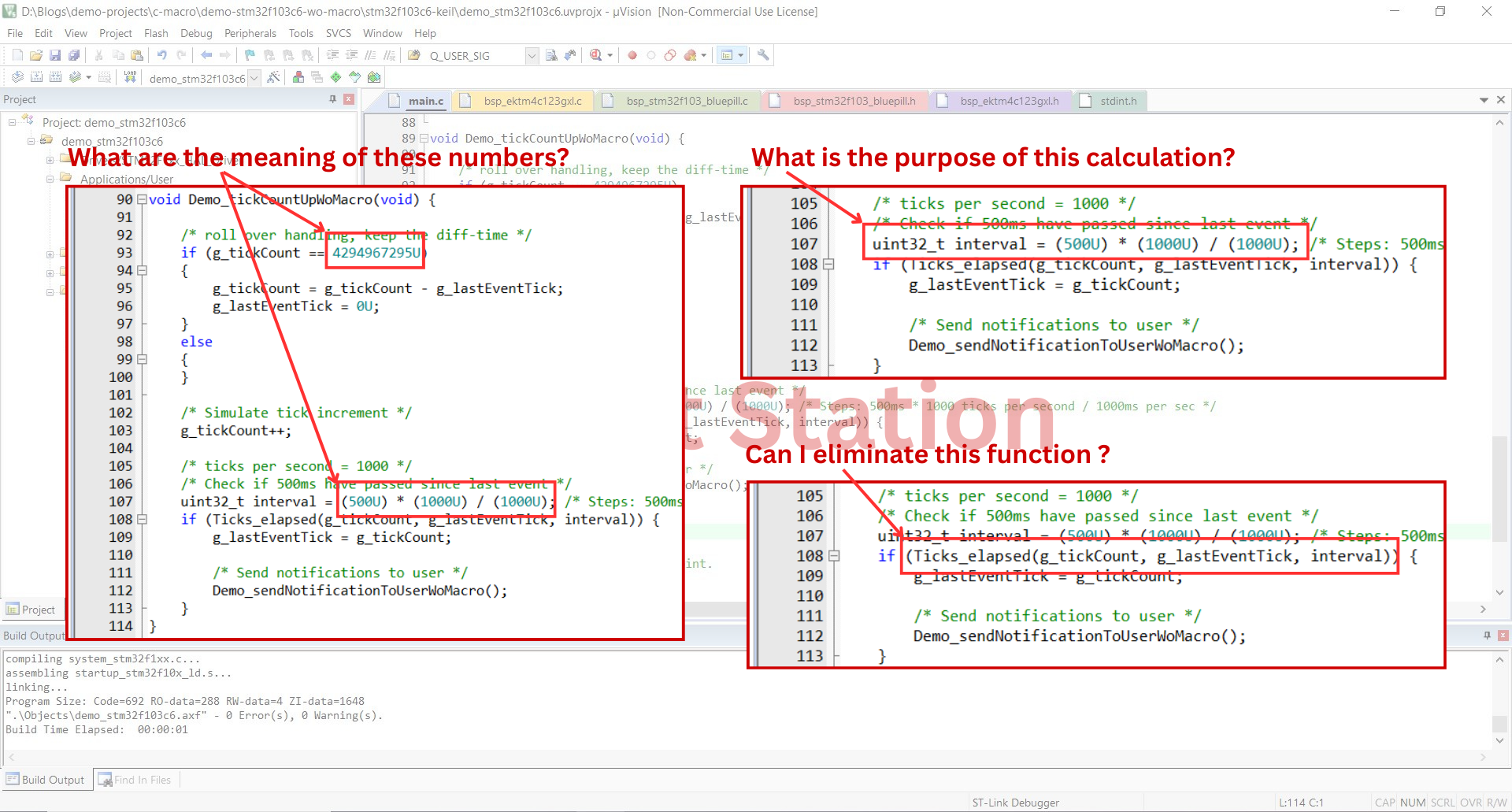

Some problems you can figure out when first looking at the implementation:

❓ What is the meaning of the numbers?
❓ What is the purpose of the calculation if I don’t write any comments?
❓ The function is quite simple and will acquire some resources and trigger a context switch, can I replace it with simpler code and optimize the resources?

Problems

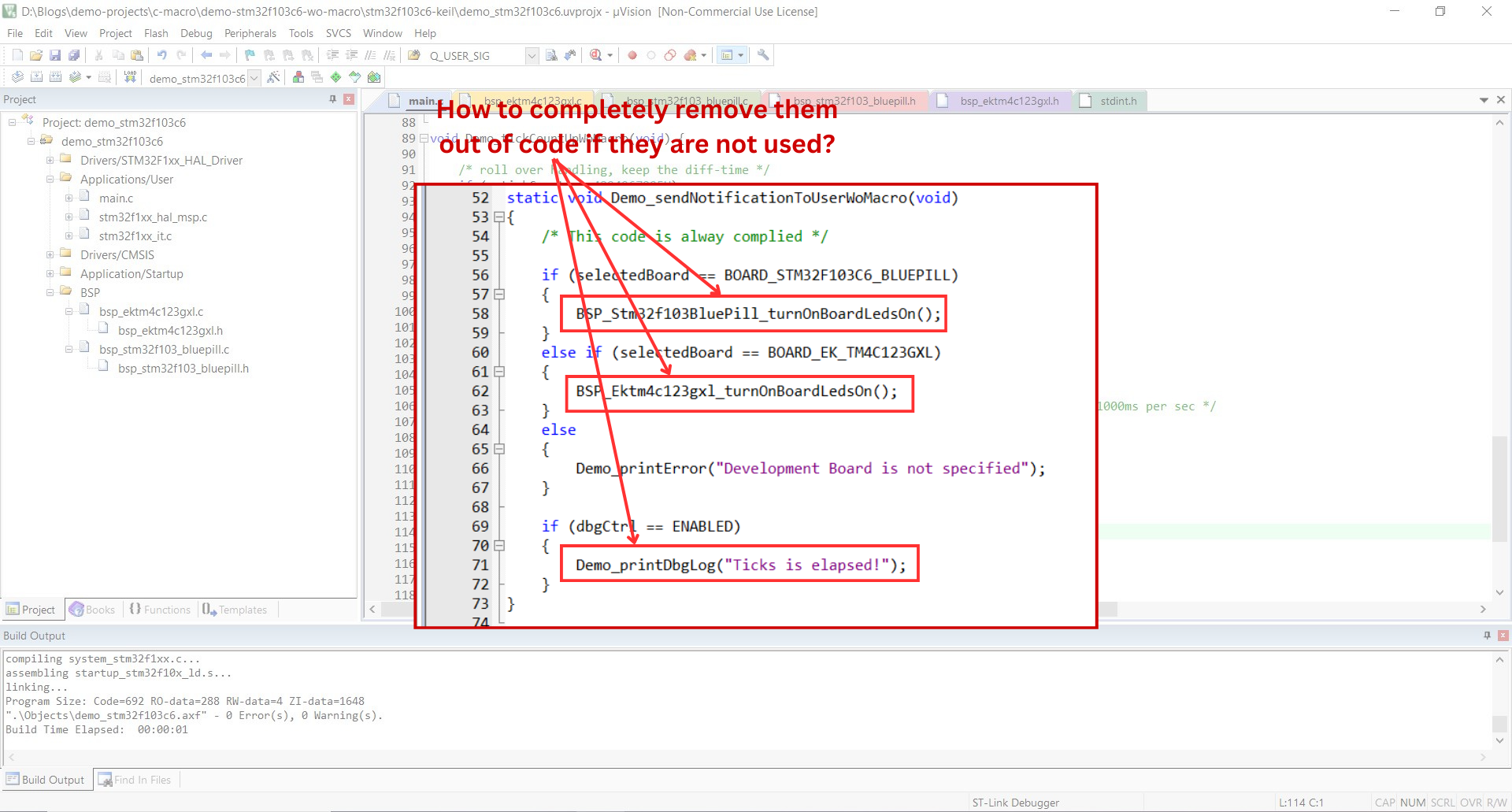

❓ Board-specific code and debug code still exist in the program at runtime, can I completely remove them when another board is selected and debug mode is disabled to make the program cleaner and use fewer resources?

Always Compiled Code Problem

❓ Are there other things that I can optimize?

Practice With Macro To Enhance The Robustness Of The Software

🔽 You can find the final source here: Demonstration With Macro

🔨 Development Boards

🔧 Development Tools

1. Constant Definition

👉 Here I see an opportunity to use macros to replace meaningless constants such as 4294967295U, 0U, 1000U.

/* Macro for maximum value of ticks */
#define TICKS_MAX_VALUE (4294967295U)

/* Macro for reset value of ticks */
#define TICKS_RESET_VALUE (0U)

/* Macro for ticks per second */
#define TICKS_PER_SECOND (1000U)

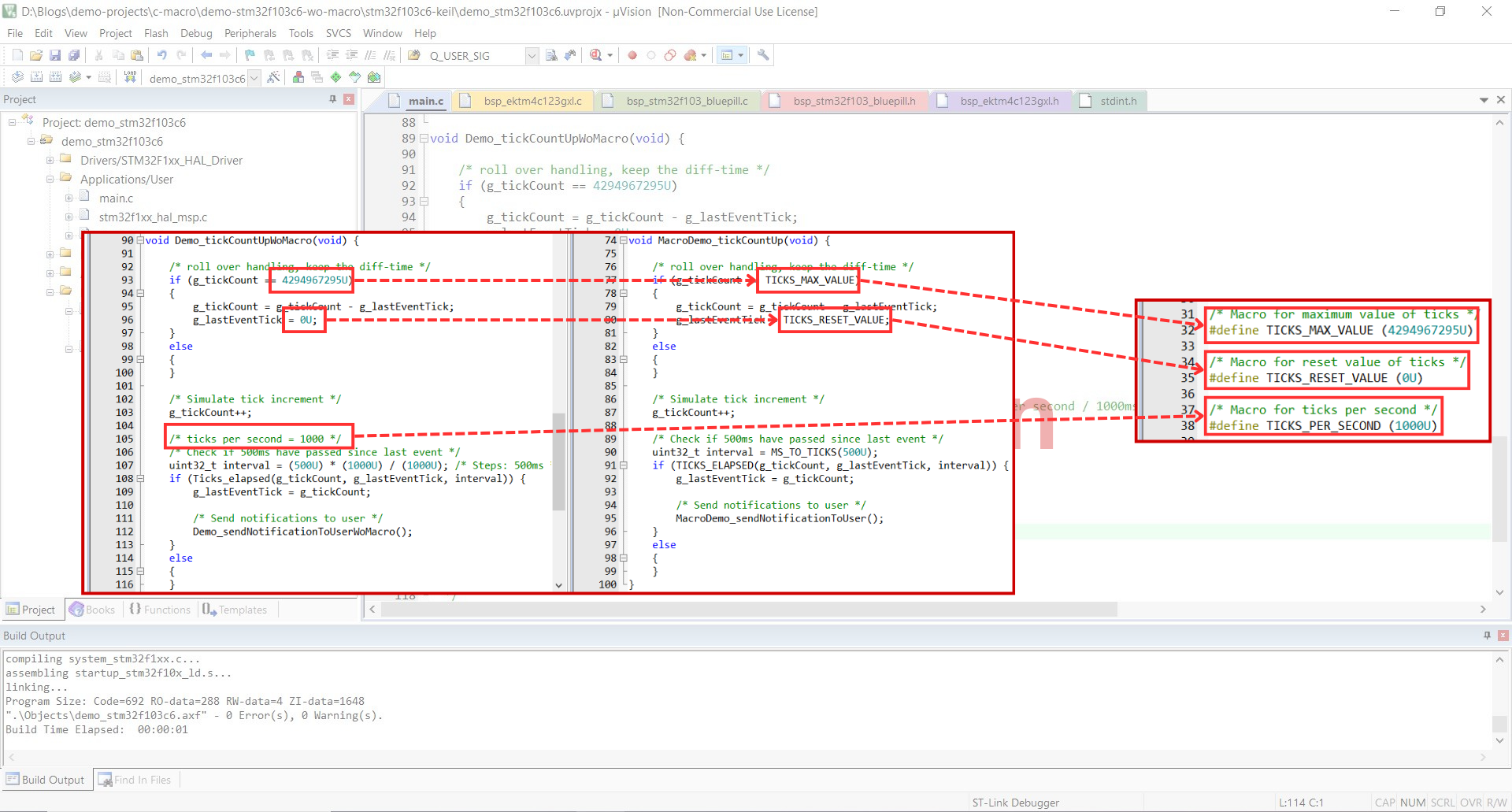

Constant Definition Example

Benefits of using macros:

Avoid repetition - Define values once, use everywhere
Easy maintenance - Change one place, updates everywhere
Better readability - Use meaningful names instead of magic numbers

2. Simple Expression

❔ If the code doesn’t have any comments, you may not know what the exact purpose of this line of code is:

uint32_t interval = (500U) * (1000U) / (1000U);

👉 I replace it with meaningful code using macros, which makes it easy to understand:

/* Macro to convert milliseconds to ticks */
#define MS_TO_TICKS(ms) ((ms) * TICKS_PER_SECOND / 1000U)

uint32_t interval = MS_TO_TICKS(500U);

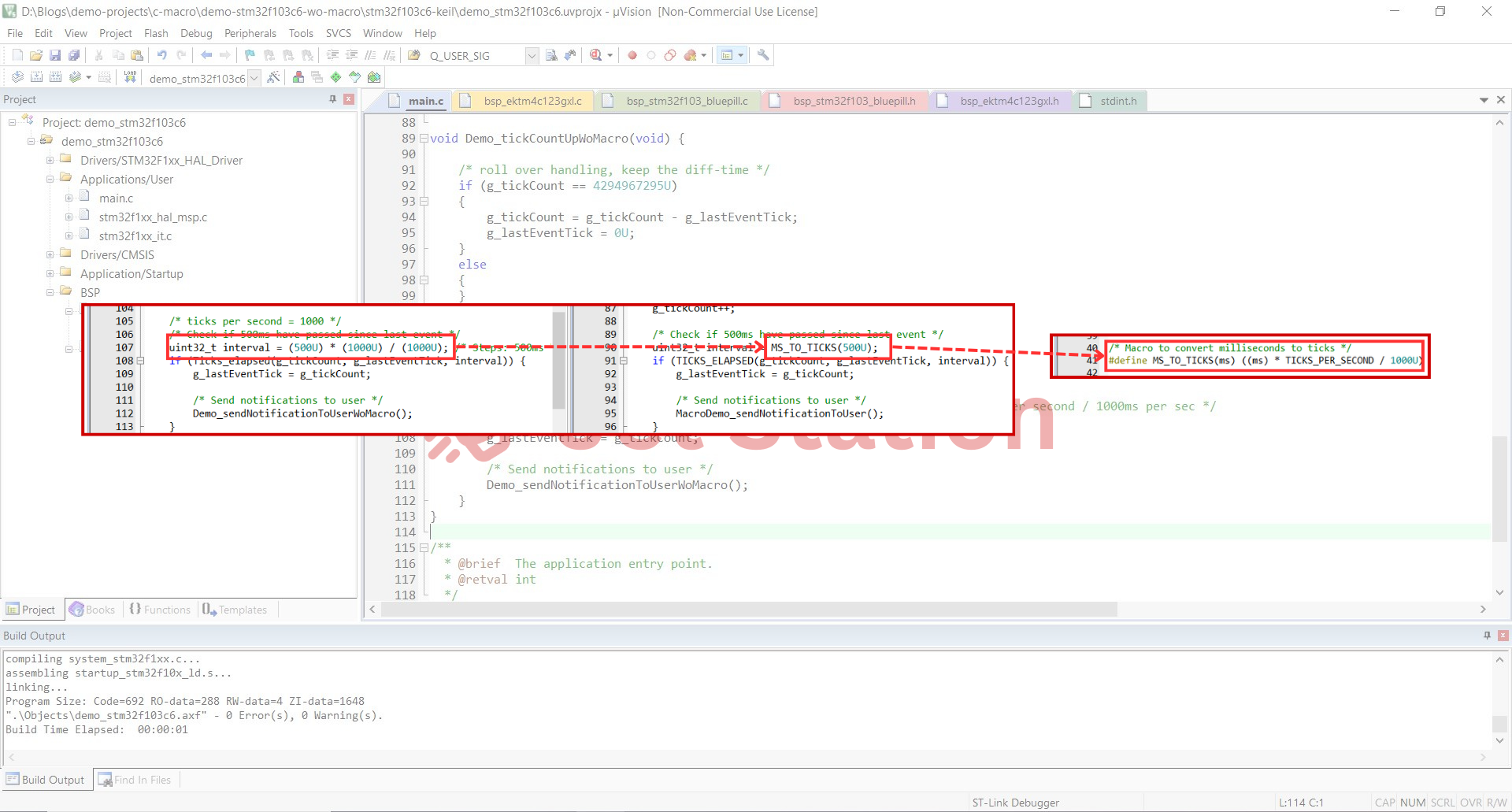

Simple Expression with Macros

Benefits of using macros for expressions:

Code clarity - Replace complex calculations with descriptive names
Compile-time computation - Values calculated during preprocessing, not runtime

3. Function-like Macro

👉 The function Ticks_elapsed() is quite simple, so I replace it with a function-like macro. There is no function call overhead because the code from the macro is inserted directly for faster execution.

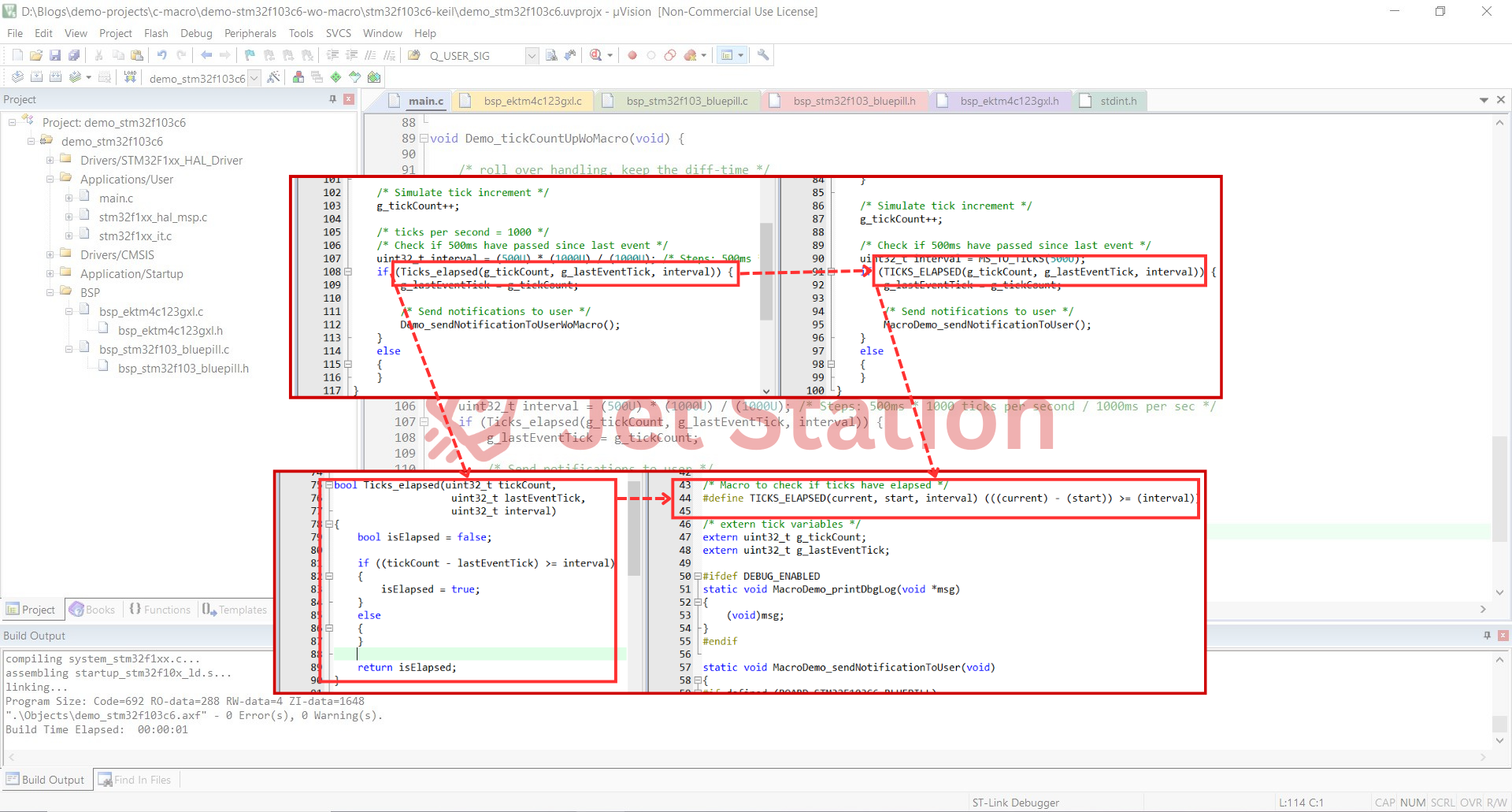

Function-like Macro Example

Benefits of using function-like macros:

No function call overhead - Code is directly substituted, faster execution
Type flexibility - Works with any data type (int, float, char, etc.)
Performance - No function call overhead, direct value substitution
Compile-time optimization - Compiler can better optimize inline code
Simple operations - Perfect for basic calculations like MAX, MIN, SQUARE

4. Conditional Compilation & Portability

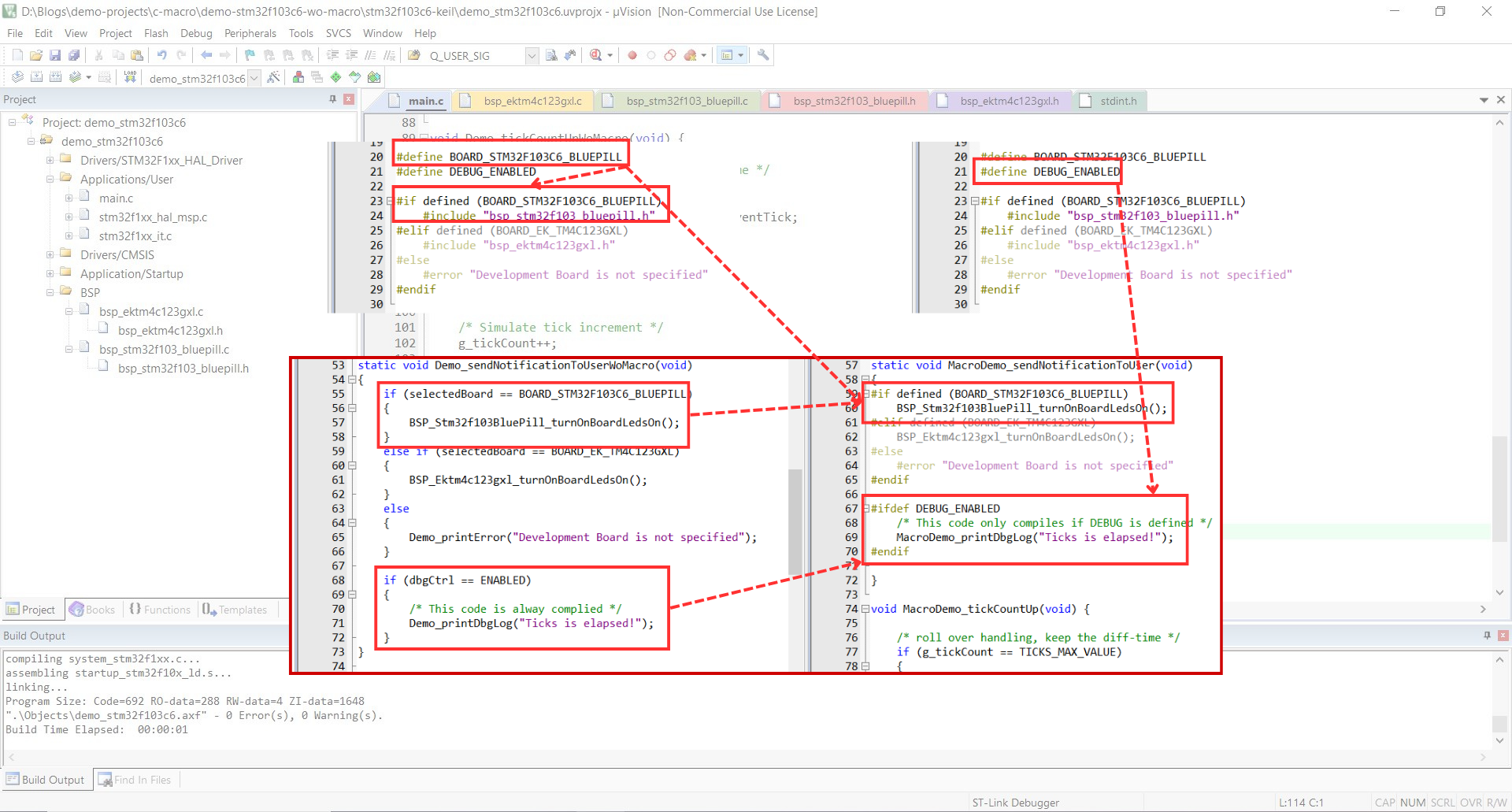

👉 I can use macros for conditional compilation with #ifdef or #if defined to include/exclude features from the program. The unused code is completely removed from the program.

#if defined (BOARD_STM32F103C6_BLUEPILL)
	#include "bsp_stm32f103_bluepill.h"
#elif defined (BOARD_EK_TM4C123GXL)
	#include "bsp_ektm4c123gxl.h"
#else
	#error "Development Board is not specified"
#endif

I use the BOARD_STM32F103C6_BLUEPILL macro to include files and BSP functions for the Blue Pill board and exclude files and BSP functions for the EK-TM4C123GXL board.
```
#define BOARD_STM32F103C6_BLUEPILL
```
I use the DEBUG_ENABLED macro to enable/disable debug code whenever needed.
```
#define DEBUG_ENABLED
```

Benefits of using macros for conditional compilation:

Code selection - Include/exclude features based on build configuration
Debug control - Add debug code only when needed, remove in release builds
Platform adaptation - Switch between different hardware configurations easily
Smaller binaries - Unused code completely removed from final program

5. Header Guards

❌ Multiple inclusion happens when the file is included more than one time. The variable, constant, data type is redefined causing this error.

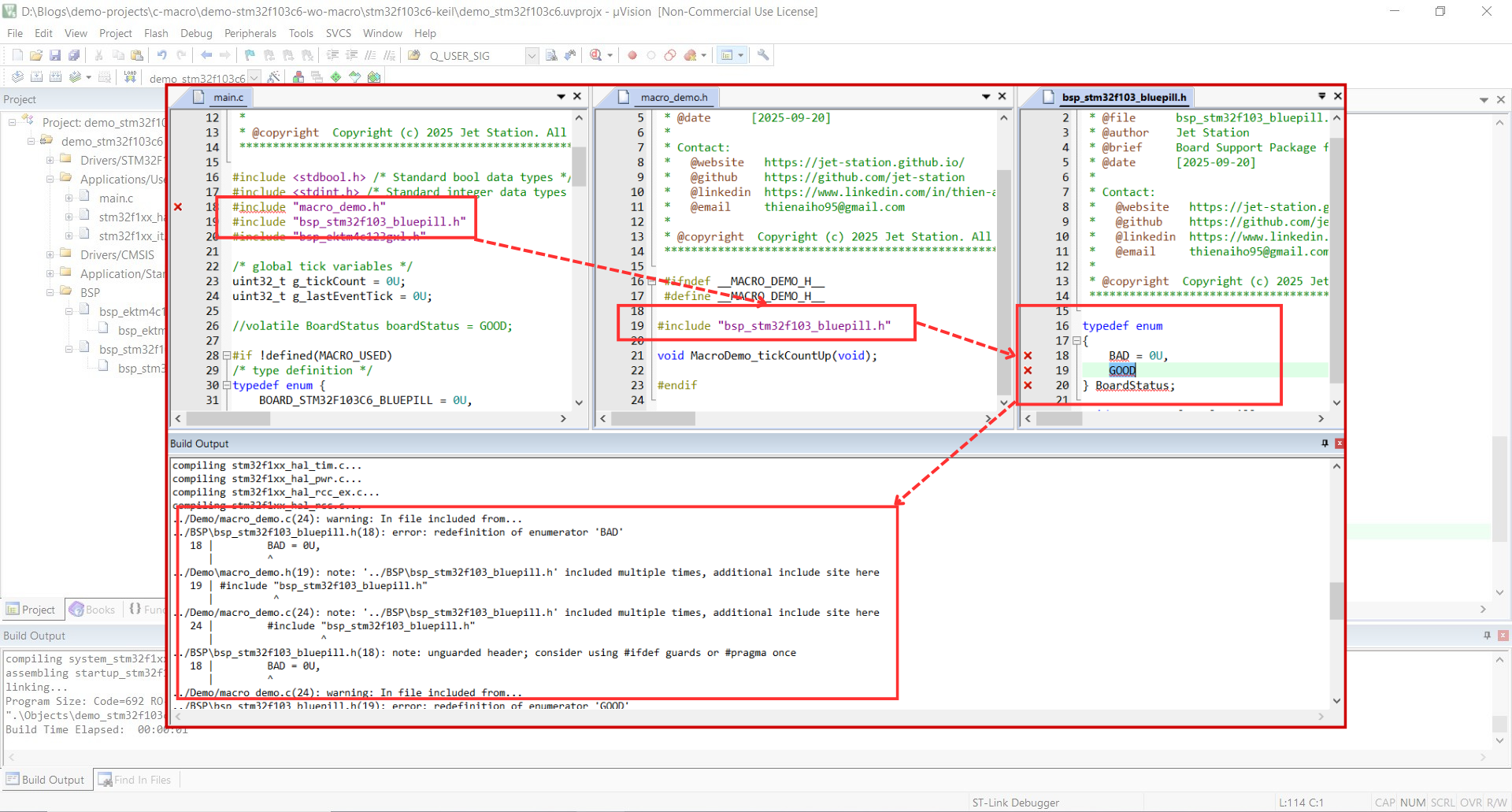

Header Guards Problem

👉 To prevent the multiple inclusion error and help the compilation faster, we can also use the header guard technique.

✔️ Example: Before including, the complier will check if bsp_stm32f103_bluepill.h file is already included or not by __BSP_STM32F103_BLUEPILL_H__ macro. If yes, the complier will skip processing this file content.

#ifndef __BSP_STM32F103_BLUEPILL_H__
#define __BSP_STM32F103_BLUEPILL_H__

typedef enum
{
	BAD = 0U,
	GOOD
} BoardStatus;

void BSP_Stm32f103BluePill_turnOnBoardLedsOn(void);

#endif

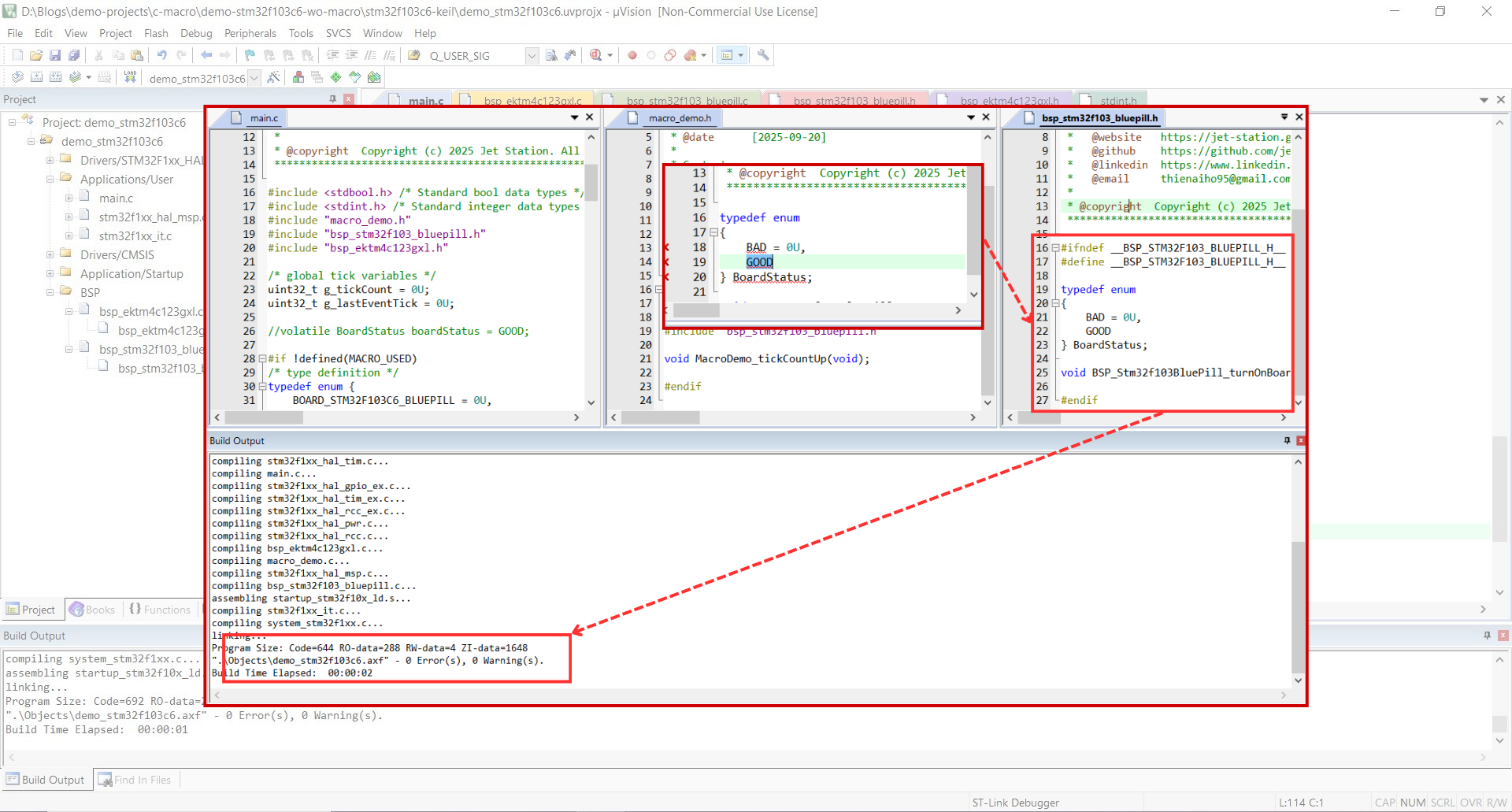

Header Guards Solution

Benefits of using macros for header guards:

Prevent multiple inclusion - Header files included only once per compilation unit
Avoid redefinition errors - Prevents duplicate function/variable declarations
Faster compilation - Compiler skips already included headers
Standard practice - Universally recognized pattern in C programming

6. Stringizing and Token Pasting

👉 You can use the macro to manipulate the string as below:

#define TO_STRING(x) #x
#define CONCAT(a, b) a##b

Benefits of stringizing and token pasting macros:

Convert to strings - Turn macro arguments into string literals for printing
Generate identifiers - Create new variable/function names dynamically
Debug assistance - Print variable names and values automatically
Code generation - Build repetitive code patterns efficiently

Best Practices for Using Macros

✔️ Here is a summary of some best practices you should follow when using macros.

1. Always Use Parentheses to Avoid Unexpected Behaviour

/* Bad */
#define SQUARE(x) x * x

/* Good */
#define SQUARE(x) ((x) * (x))

2. Use UPPERCASE for Macro Names

#define MAX_BUFFER_SIZE 1024U
#define LED_PORT GPIOC

3. Add ‘U’ Suffix for Unsigned Constants

#define TIMEOUT_MS 5000U
#define MAX_COUNT 100U

4. Use Include Guards to Avoid Mutiply Inclusion

#ifndef MY_HEADER_H
#define MY_HEADER_H
/* content here */
#endif

5. Avoid Side Effects in Function-like Macros

/* Bad - evaluates 'x' multiple times */
#define MAX(x, y) ((x) > (y) ? (x) : (y))

/* Better - use inline functions for complex logic */
static inline int max(int x, int y) {
    return (x > y) ? x : y;
}

6. Use Meaningful Names

/* Bad */
#define N 10

/* Good */
#define MAX_USERS 10

7. Document Complex Macros

/**
 * @brief Convert milliseconds to system ticks
 * @param ms Milliseconds to convert
 * @return Number of system ticks
 */
#define MS_TO_TICKS(ms) ((ms) * TICKS_PER_SECOND / 1000U)

Disadvantages of Using Macros

❌ No type checking - Macros accept any data type, can cause errors
❌ Hard to debug - Debugger shows expanded code, not the original macro
❌ Not suitable for complex logic - Complex macros become difficult to read and maintain

[!TIP] Use inline functions for complex logic instead of macros.
